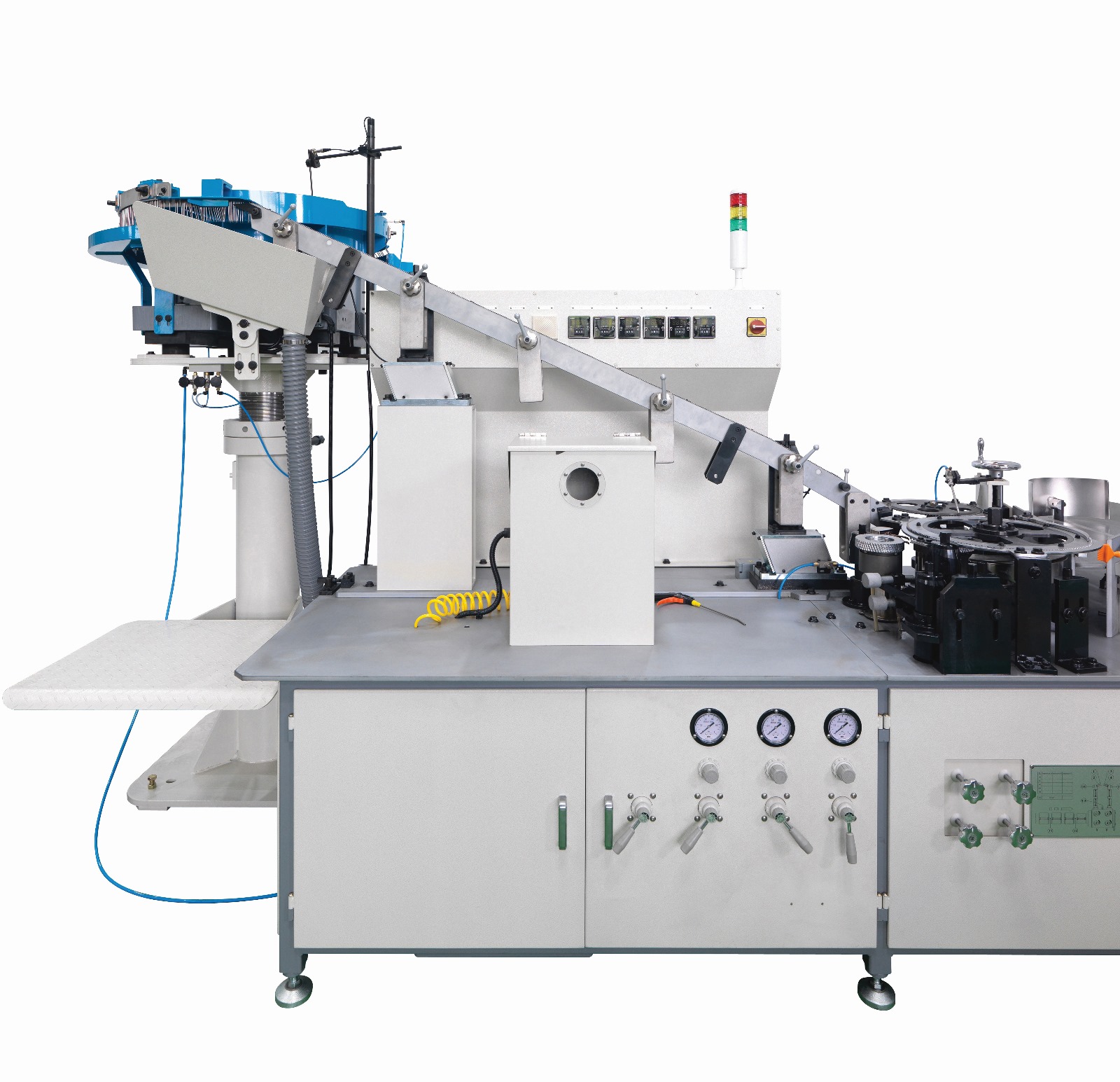

Detail of the PL-20 machine

PL-20 Plastic Strip Collator: Where Precision Meets Efficiency.

Previous image PL-20 Next image

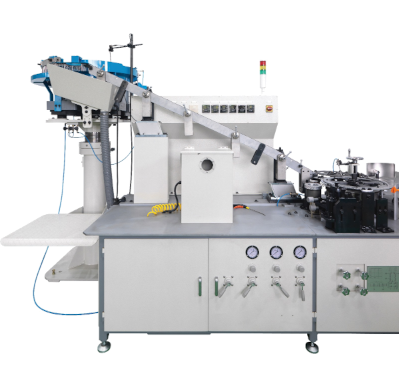

The PL-20 Plastic Strip Collator from ZEUS TECHNO INC

Plastic Strip Collator PL-20: Discover precision and efficiency like never before with the PL-20 Plastic Strip Collator. With a top speed of 2,200 nails per minute, this machine redefines nail collation for accurate and dependable production. Featuring cutting-edge plastic strip collation technology and versatile coiling capabilities, the PL-20 guarantees consistent and efficient nail manufacturing. Make the PL-20 your trusted partner for meeting all your nail production needs.

Watch the video of the PL-20


Watch video

Specifications:

Model:
PL-20
Nail Diameter Range:
2,03 - 4,1 mm / 0.08" - 0.161"
Nail Length Range:
45 - 100 mm / 1 ³/₄" - 4"
Speed:
Up to 1 200 Nails/min
Electric Power:
30 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Nail Angle Range:
20° - 35°
Nails Per Strip:
20 - 40 pcs
Weight Kg-Lbs:
2 000 kg / 4,400 lbs
Air Consumption:
800 l/min. / 48 m³/hod. / 28.3 CFM
Air Supply:
6 bar / 87 psi / (One 1/2" hose)
Space Required:
2 740 x 1 910 x 1 900 mm / 8' 11.9" x 6' 3.2" x 6' 2.8"
Machine Noise:
80 dBA
Weight:
2 000 kg
Depth:
1 910 mm
Height:
1 900 mm
Width:
2 740 mm
Essential equipment:
Optional equipment:
