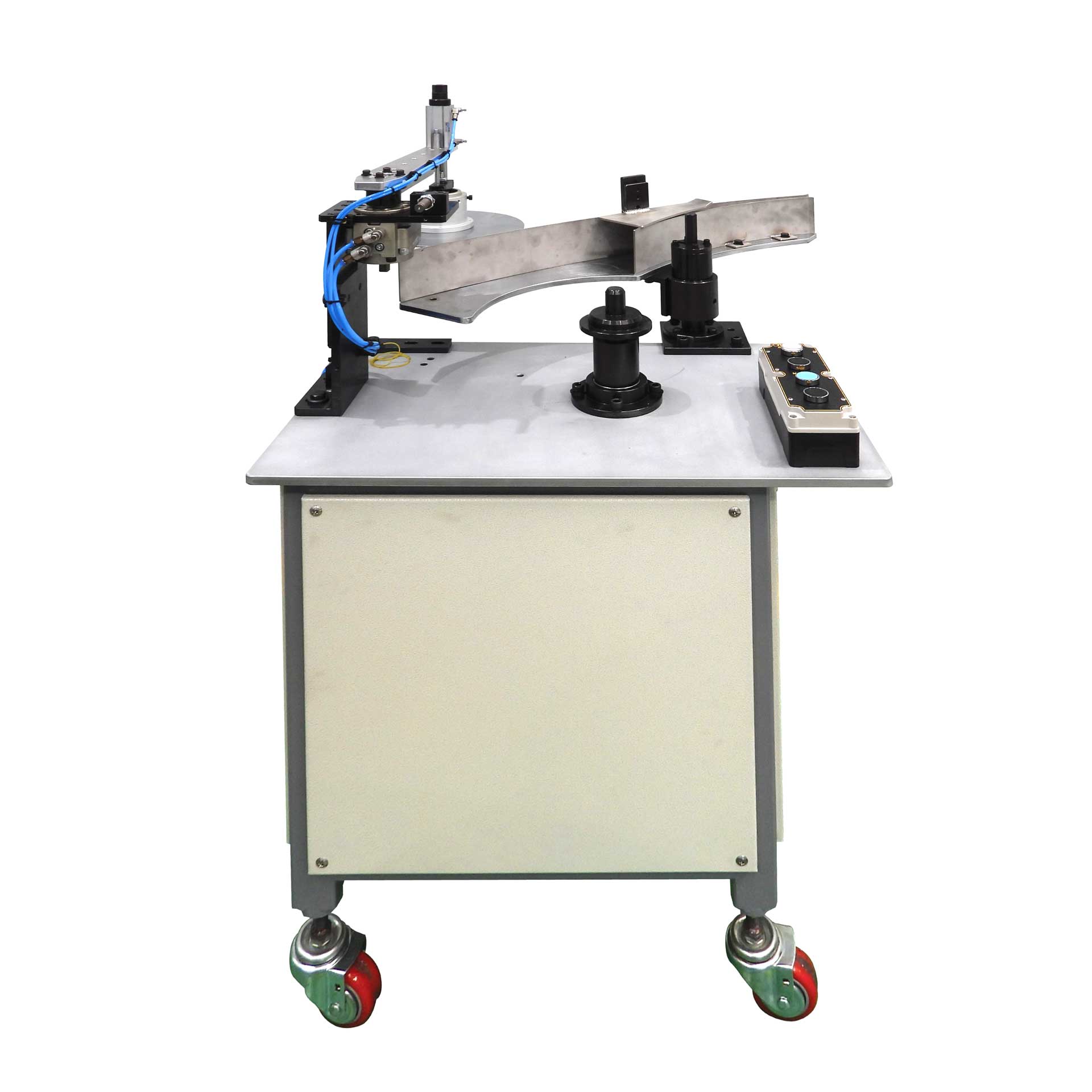

Jumbo Coiler Single from ZEUS TECHNO INC

Jumbo Coiler Single is a precision-driven machine designed for efficient coiling of wire nails. With the capacity to handle up to 3,000 nails per coil, this coiler offers high-speed performance and reliability, making it an ideal choice for nail manufacturing processes.

No videos available for SINGLE-JC

Specifications:

Model:
SINGLE-JC
Nail Diameter Range:
1,6 - 3,77 mm / 0.625" - 0.148"
Nail Length Range:
19 - 100 mm / ³/₄" - 4"
Electric Power:
3 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Bobbin Inner Diameter:
32 - 85 mm / 1.26" - 3.346"
Bobbin Outer Diameter:
Up to 380 mm / 14.961"
Nails Per Coil:
Up to 3 000 pcs
Weight Kg-Lbs:
300 kg / 700 lbs
Air Supply:
6 bar / 87 psi / (One 1/2" hose)
Space Required:
790 x 700 x 800 mm / 2' 7.1" x 2' 3.6" x 2' 7.5"
Weight:
300 kg
Depth:
700 mm
Height:
800 mm
Width:
790 mm
