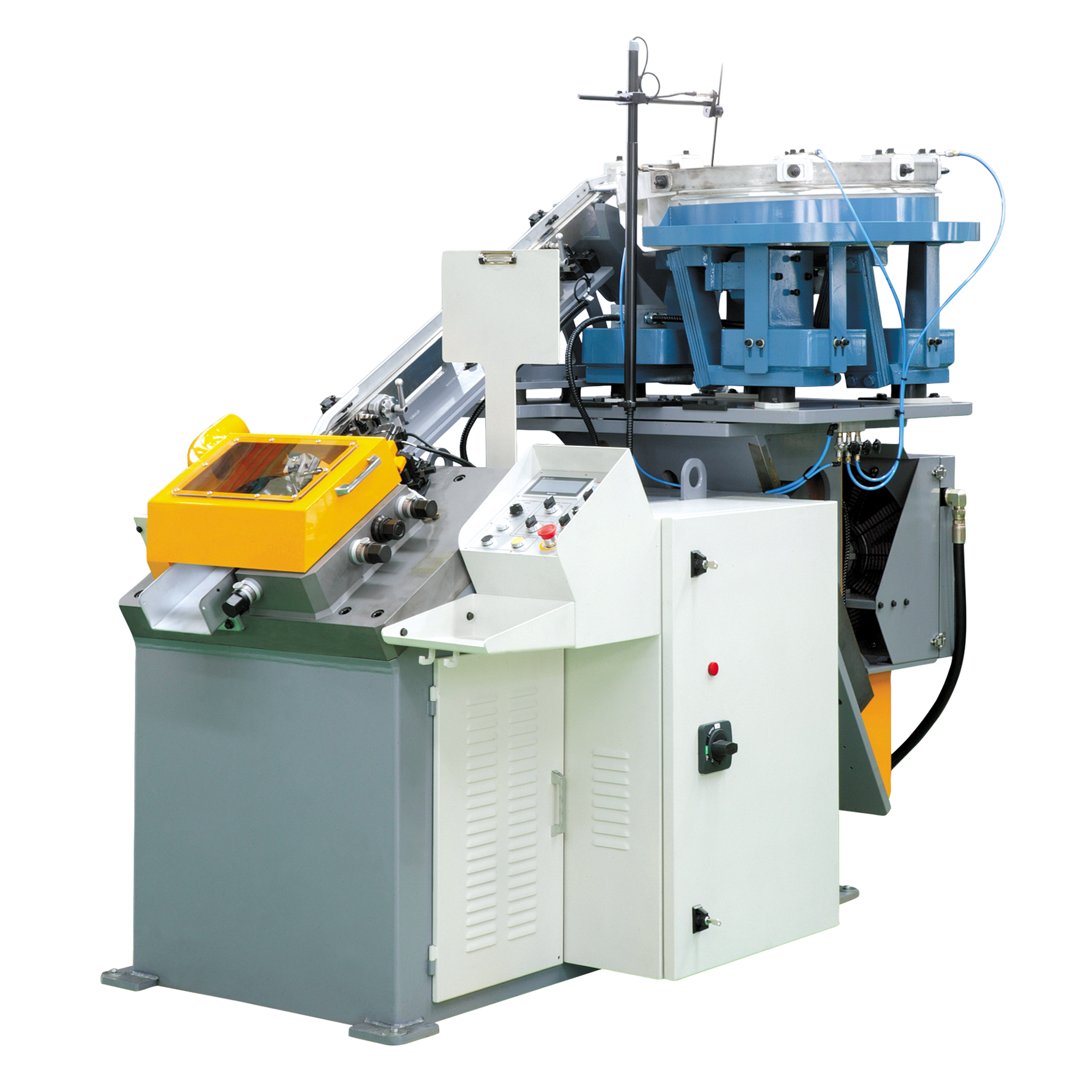

The RT 20SL 160 Thread roller from ZEUS TECHNO INC

Thread roller RT 20SL 160 is a high-speed and efficient solution for producing ring shank nails. With its Neo PWM vibrating systems and precise nail feeding servo motor driven screw system, it achieves production speeds of up to 2500 nails per minute. The machine's main driving motor boasts a powerful 15 hp with a full feature vector drive, and its heavy-duty spiral bevel gear enhances durability. The RT-20C offers easy setup and maintenance, along with essential features like a cooling apparatus for extended die life. Its compact design and advanced features make it a valuable asset for nail manufacturing processes.

Watch the video of the RT-20SL-160


Watch video

Specifications:

Model:
RT-20SL-160
Nail Diameter Range:
2.8 - 4.87 mm (0.110 - 0.191 inch)
Nail Length Range:
100 - 160 mm (4.0 - 6.3 inch)
Speed:
Up to 600 nails/min.
Electric Power:
15 kW max, 3P, 210-230 V, 50/60 Hz
Air Consumption:
200 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Thread Length Range:
75 mm (3 inch)
Weight:
2,200 kg (4,900 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 1250mm length, 30 degrees aligned.
  • Precise cam nail feeding system, servo motor by Auger.
  • Up/down setup for effortless adjustment of the thread height.
  • Fine tuning adjusting bolt ensures production of threads of the highest quality.
  • Powerful 15 hp main driving motor equipped with a full feature vector drive for comprehensive functionality.
  • Main spindle driven by a heavy-duty spiral bevel gear for enhanced durability.
  • Cooling system for both gearbox & die block along with oil cooling radiator.
  • Possibility of rebuilding to RT-20SL 160 or RT-20SL 300.
