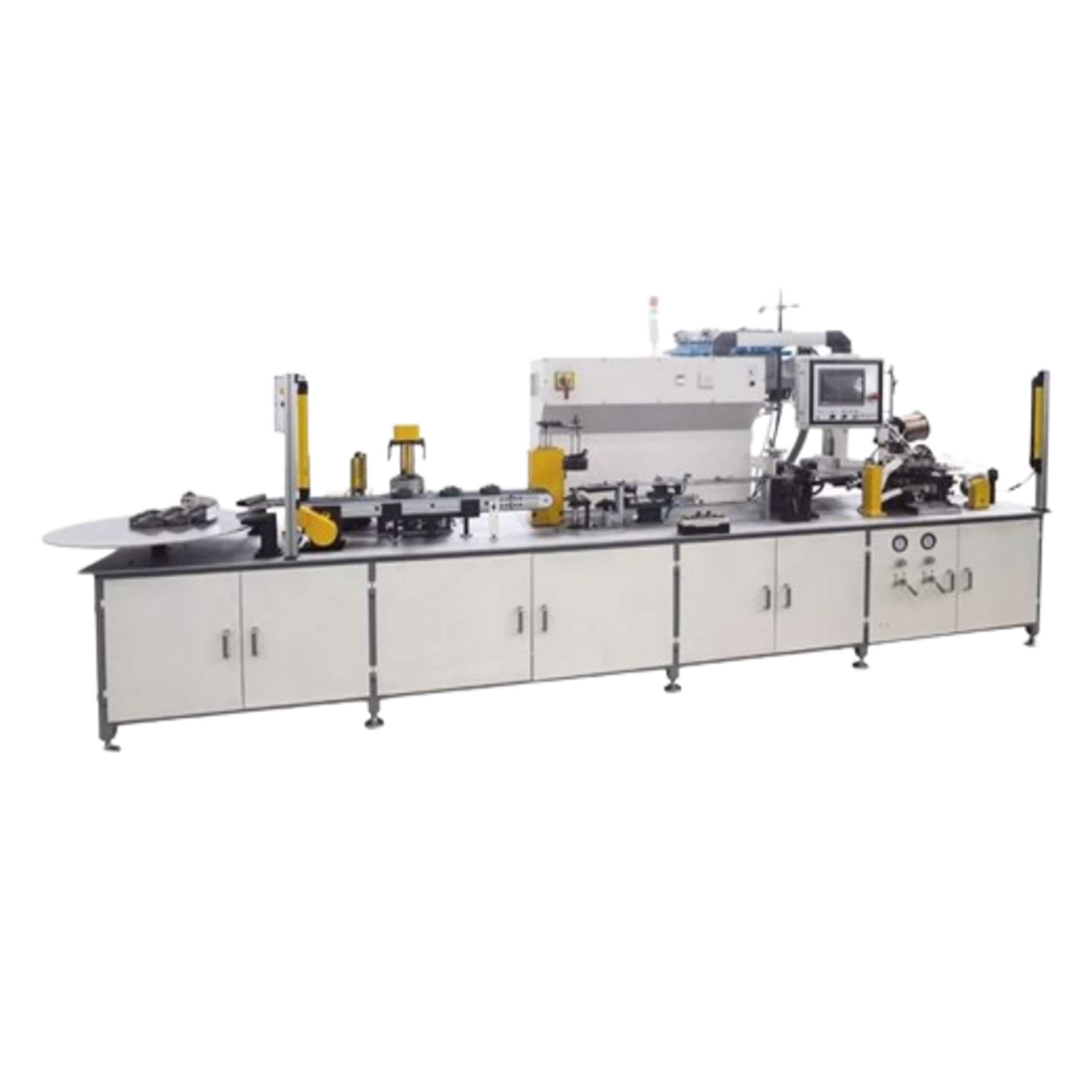

The CH-90 Wire Weld Collator from ZEUS TECHNO INC

Wire Weld Collator CH-90: Experience the future of wire weld collation with the CH-90 Wire Weld Collator. This machine redefines precision and efficiency in nail production. With an impressive operating speed of up to 2,000 nails per minute, the CH-90 ensures dependable and accurate nail manufacturing. Its advanced wire weld technology and flexible coiling options make it the preferred choice for achieving superior nail production. Elevate your manufacturing process with the CH-90 and witness unmatched precision in action.

Watch the video of the CH-90


Watch video

Specifications:

Model:
CH-90
Nail Diameter Range:
2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range:
19 - 100 mm (3/4 - 4 inch)
Speed:
Up to 2,000 nails/min.
Electric Power:
28 kW max, 3P, 210-230 V, 50/60 Hz
Nail Angle Range:
15 - 16 degree
Nails Per Coil:
200 - 400 pcs
Air Consumption:
320 litters/min.
Air Supply:
6 bar (87 psi), one 1/2 inch hose
Weight:
3,700 kg (8,200 lbs)
Features:
  • Neo PWM vibrating systems.
  • Straight steep down rail: 1,700mm length, 30 degrees aligned.
  • High-frequency inverter welder.
  • Cutter, coater, coiler: plane and dome-type coiling.
  • Coating: Spray roller coating with recycling pump and stainless storage tank type.
  • Accumulating table with warm air dryer.
  • Carrier armed touch screen computer controls.
