MP-2

Paper taped stick nail collator

Previous image MP-2 Next image

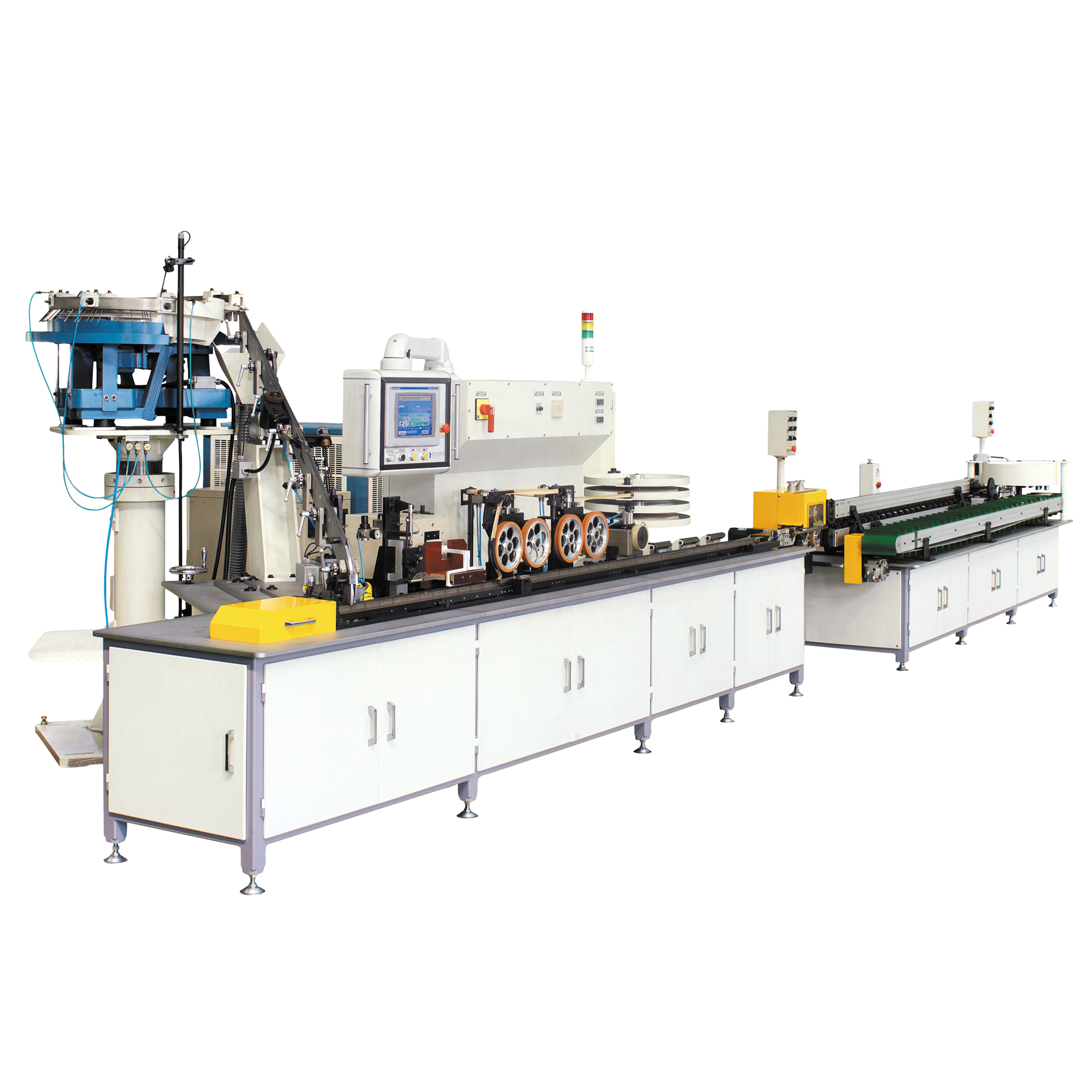

The MP-2 Paper Tape Collator from ZEUS TECHNO INC

Paper Tape Collator MP-2: Achieve efficient and precise nail collation with the MP-2 Paper Tape Collator. This machine operates at remarkable speeds of up to 1,500 nails per minute, making it an ideal choice for dependable and accurate nail production. With its advanced paper tape collation technology and coiling capabilities, the MP-2 ensures reliable and efficient nail manufacturing. Its versatility and precision make it an indispensable asset for your nail production needs.

Watch the video of the MP-2


Watch video

Specifications:

Model:
MP-2
Nail Diameter Range:
2.5 - 4.2 mm (0.099 - 0.165 inch)
Nail Length Range:
38 - 100 mm (1 1/2 - 4 inch)
Speed:
Up to 1,500 nails/min.
Electric Power:
58 kW max, 3P, 210-230V, 50/60 Hz
Nail Angle Range:
33 - 35 degree
Nails Per Strip:
20 - 40 pcs
Air Consumption:
500 litters/min.
Air Supply:
6 bar (87 psi), two 1/2 inch hoses
Weight:
3,800 kg (8,400 lbs)
Features:
  • Step down rail: Angle adjustable 2,000mm length, 30 degrees aligned goose neck feeding end rail.
  • Horizontal double lane aluminum chain links: 100 links each
    2 lanes segment: 80mm RH 100pcs, LH 100pcs. Adjustable pair of chains perform precise quality management.
  • Heater: HF Induction heating system.
  • Sync' PCB: Minimized scrap product by synchronizing main driving gear and inductor.
  • Tape magazine: 2 extra cartridges placed with paper tape uncoiler help quickly change tape loading.
  • Quick strip cooling: High performance cooling air knife makes a strip nail cool down fast
  • Cuter: Servo motorized flying cuter
  • Auto stacker: stacker 4 index electromagnet type/conveyor: up to 12strips per stack. Number of strips per stack is easily changed by operator.
  • Carrier-armed touchscreen computer controls
